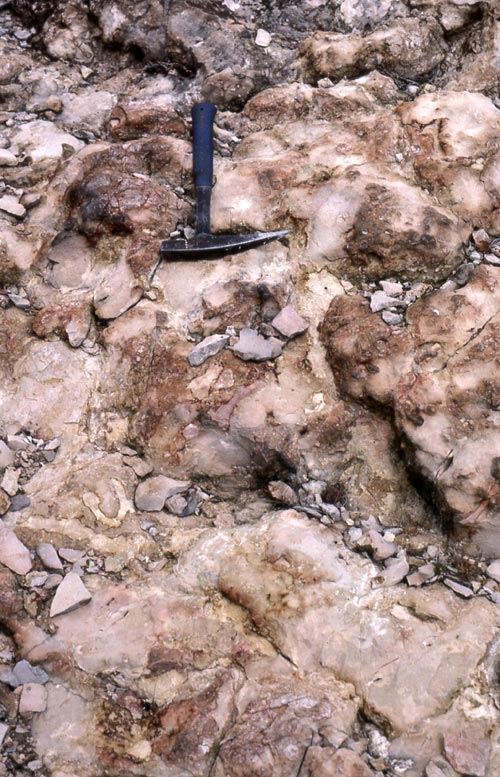

| Incomplete K/Pg boundary transition (Relleu 3). The K/Pg hardground contains abundant ferromanganese, cherty nodules, marking a hiatus from Maastrichtian to Oligocene (relleu-3) |
|
 |

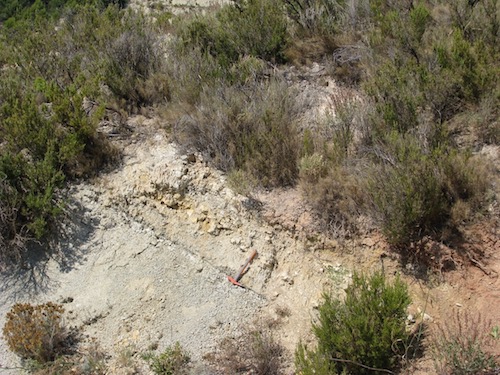

Relleu-1 outcrop. Hammer head (handle is 35 cm) rests on the impact layer. At the tip of the handle is the hard limestone indicating a bloom of calcareous dinoflagelates (Thoracosphaera). This layer occurs at all sections just above the eugubina zone in the Spanish Betic continental margin |
| There are several outcrops of the K/Pg boundary. Only two adjacent outcrops, Relleu 1 and 2, along the road CV755 are complete biostratigraphically. | ||
 |
|
|

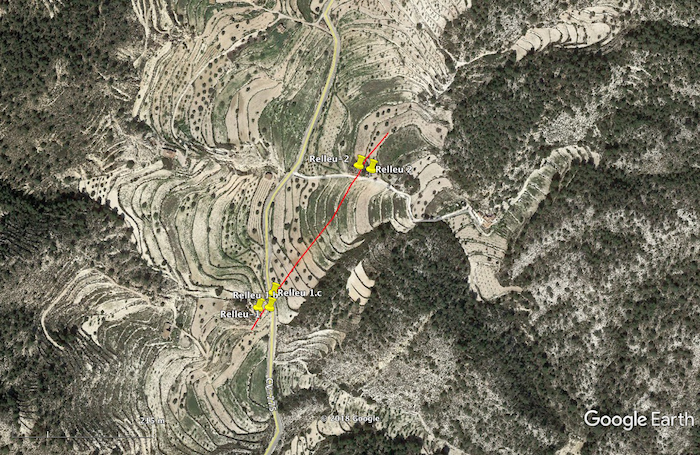

Locations of Relleu 1 and 2 sections (see ten Kate, W. G. H. Z., and Sprenger, A., 1993, Orbital cyclicities above and below the Cretaceous/Paleogene boundary at Zumaya (N Spain), Agost and Relleu (SE Spain): Sedimentary Geology, v. 87, p. 69-101.) Google Earth Relleu 1: |

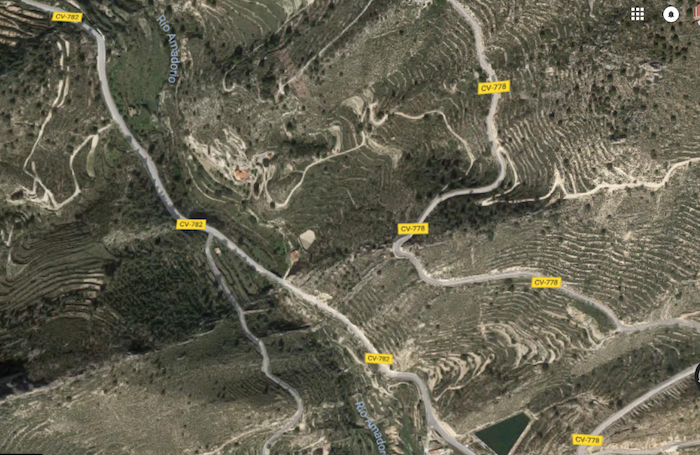

Locations of the channel with giant flutecasts and relleu-3 the K/T boundrary with manganese crust. |
|
 |
 |
||

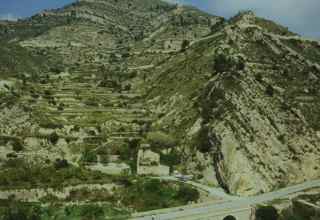

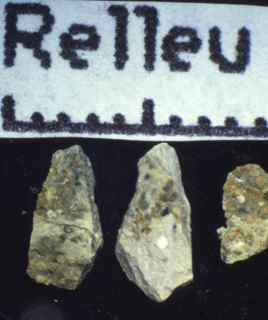

| Large turbidite-filled channel, incised in Maastrichtian Marls (large) | Spherules at the outcrop Relleu 1 (large) | ||
